VEROLITE

APPLICATIONS

SWIMMING POOL COVERS,  ROOFING, GLAZING, PARTITIONS. WINDOWS, SKYLIGHTS, DOMES


drawing of roof 1.jpg (12139 bytes) b&w thermoclear roofing.jpg (2716 bytes)drawing of partition.jpg (8411 bytes)







LEXAN® THERMOCLEAR Sheet

DATA SHEET

Multi-wall LEXAN® THERMOCLEAR (LTC) sheet offers high impact strength and light transmission plus superior energy efficiency. It also provides superior long-term resistance to weather extremes. LEXAN® THERMOCLEAR DRIPGARD (LTD) sheet features condensate control coating (6mm and 8mm) for greenhouse applications. THERMOCLEAR sheet can be easily cold-formed on site as primary glazing for new construction, and overglazing in retrofit projects. Vertical internal ribbing and a sleek surface helps provide a fresh, updated look for older buildings.

Benefits:
•High impact strength, UV resistant and cold formable.
•15 % the weight of double-pane glass.
•Up to 40 % better insulation than single-pane glass.
•Transmits up to 82 % of visible light.
•Complies with major model building codes.
•10-year limited warranty against breakage excessive yellowing and loss of light transmission.
Sheet Sizes:
4’x8’, 5’x8’, 6’x8’. Other sizes available upon request

Sheet Thickness:
6mm, 8mm, 10mm, 16mm, 20mm, 25mm

Available Colors:
Clear, Bronze, White, Opal, and Green (10mm only). Other colors available upon request
General Applications:
•Atriums, canopies and walkways

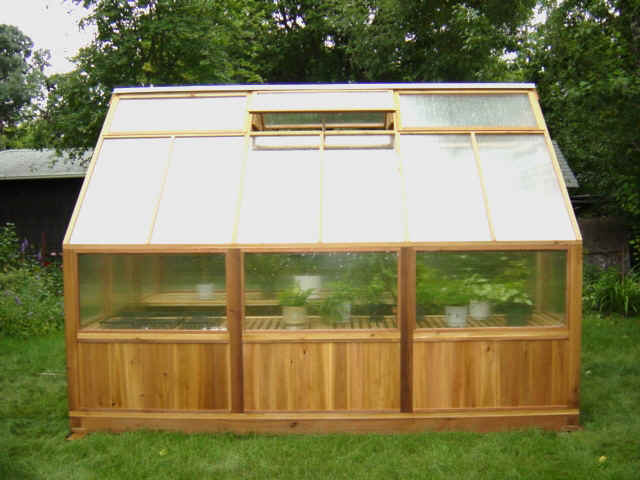

•Greenhouses
•Skylights/overhead glazing
•Industrial overglazing
•Pool enclosures
•Office partitions
•Stadiums

**LEXAN® is a registered trademark of the General Electric Company


DATA SHEET

PRODUCT SELECTOR

RFX TYPE TRIPLE WALL DATA

TITAN TYPE TRIPLE WALL DATA

SPECIAL EXTRA LARGE SHEETS ARE NOW AVAILABLE STOCK
